Control Implementations (SCTM)

Apply a baseline template to the SCTM, track compliance and continuous monitoring per control, and record CCI-level implementation responses in the package Catalog.

Control work in a package happens in two linked views. The SCTM (Security Controls Traceability Matrix) is the per-control ledger an assessor reads: applicability, type, responsibility, compliance status, ConMon frequency, evidence and validation method. The package Catalog is where the implementation itself is written, one CCI at a time, and the Catalog's status rolls up into the SCTM.

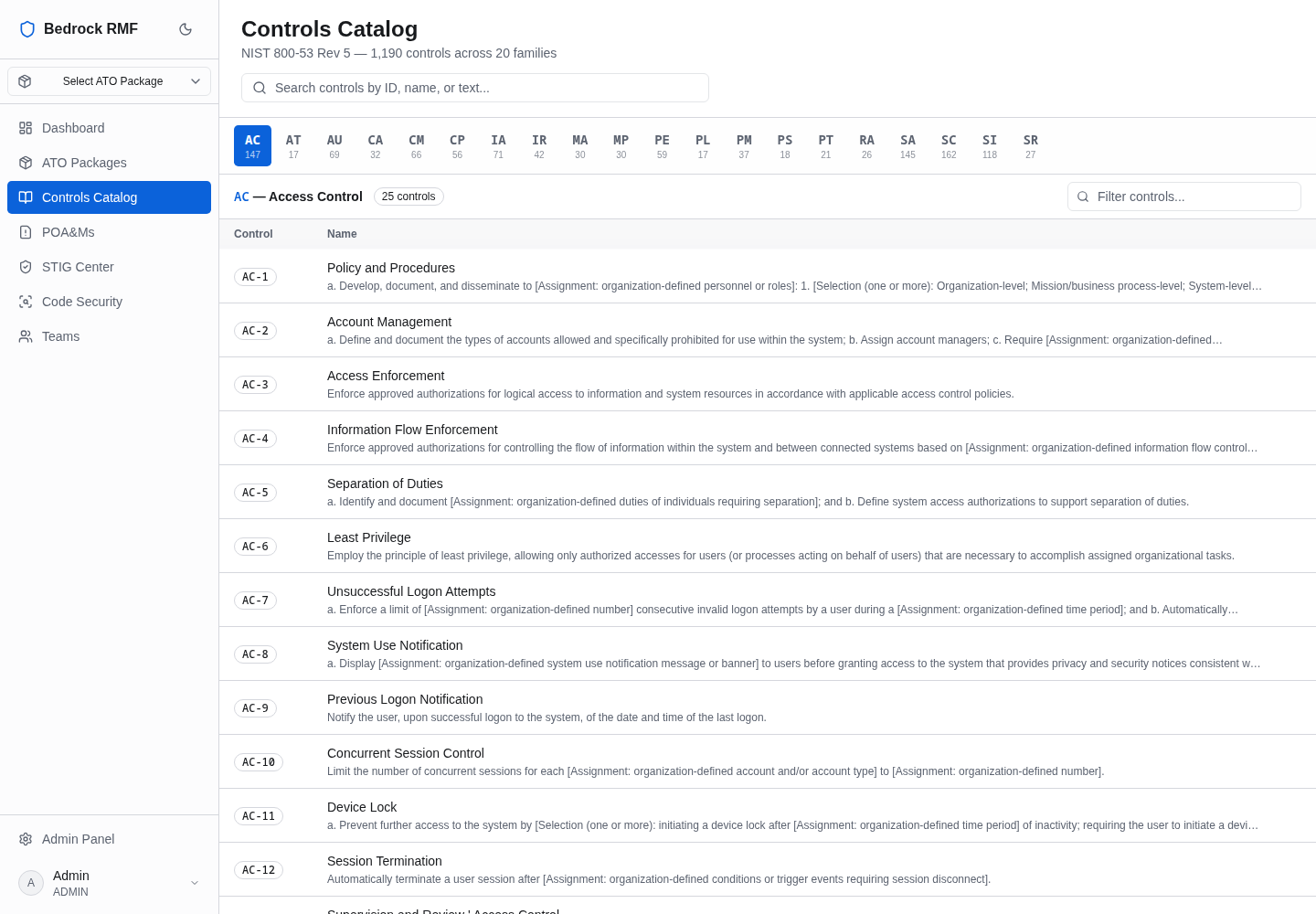

The reference catalog

Controls Catalog in the main sidebar is the read-only NIST SP 800-53 Rev 5 reference — "1,190 controls across 20 families". Family buttons (AC … SR, each with a count) filter the table of Control / Name with the full control text expanded per row. Nothing you do here touches a package; it is there to look things up.

The SCTM

Open SCTM in the package sidebar. The page is titled Security Controls Traceability Matrix — Compliance, continuous monitoring, and validation tracking.

Apply a baseline template first

The SCTM is empty until a baseline template is applied. Click Apply Baseline Template. The dialog reads "Select a control baseline or overlay for this package. Existing tailoring and assessment data is preserved — conflicts are flagged, never overwritten." Pick a template from the combobox — NIST 800-53 Rev 5 High (522 controls), Moderate (297) or Low (126); the one matching the package's high-water mark is marked Recommended and preselected — and click Apply Template.

Applying is idempotent. If you change the package baseline later, use Apply / Re-apply Template in the SCTM header; tailoring and assessment data you have already entered is kept. The templates themselves are managed under Admin → Baseline Templates.

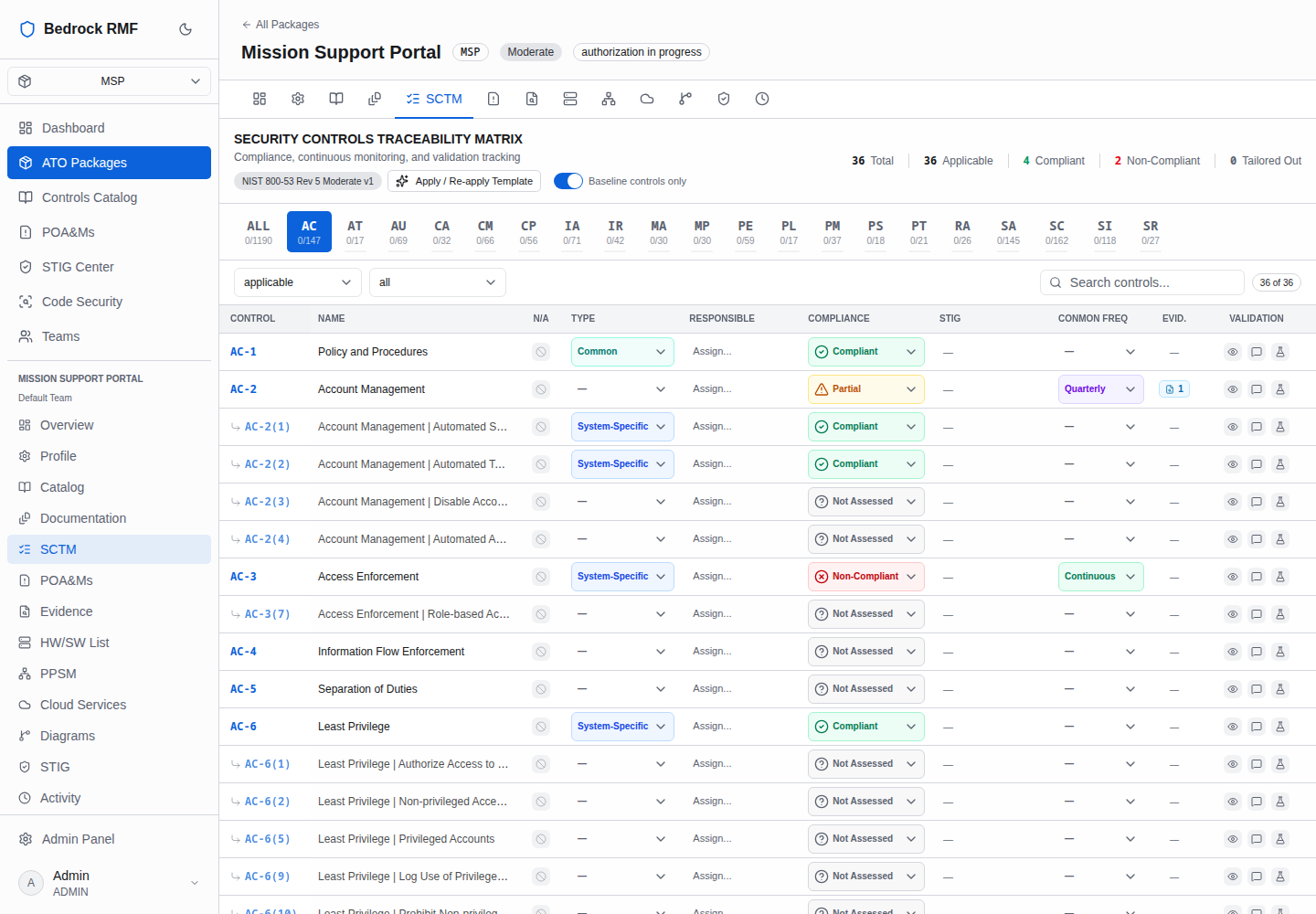

Reading the matrix

The header shows the applied template badge (for example NIST 800-53 Rev 5 Moderate v1), the Baseline controls only switch, and totals: Total, Applicable, Compliant (green), Non-Compliant (red), Tailored Out. Family buttons show compliant / catalog size for that family (ALL 0/1190, AC 0/147 …). Filters: applicable (applicable / all / N/A), all (type), Search controls…, and a "36 of 36" style count of rows currently shown.

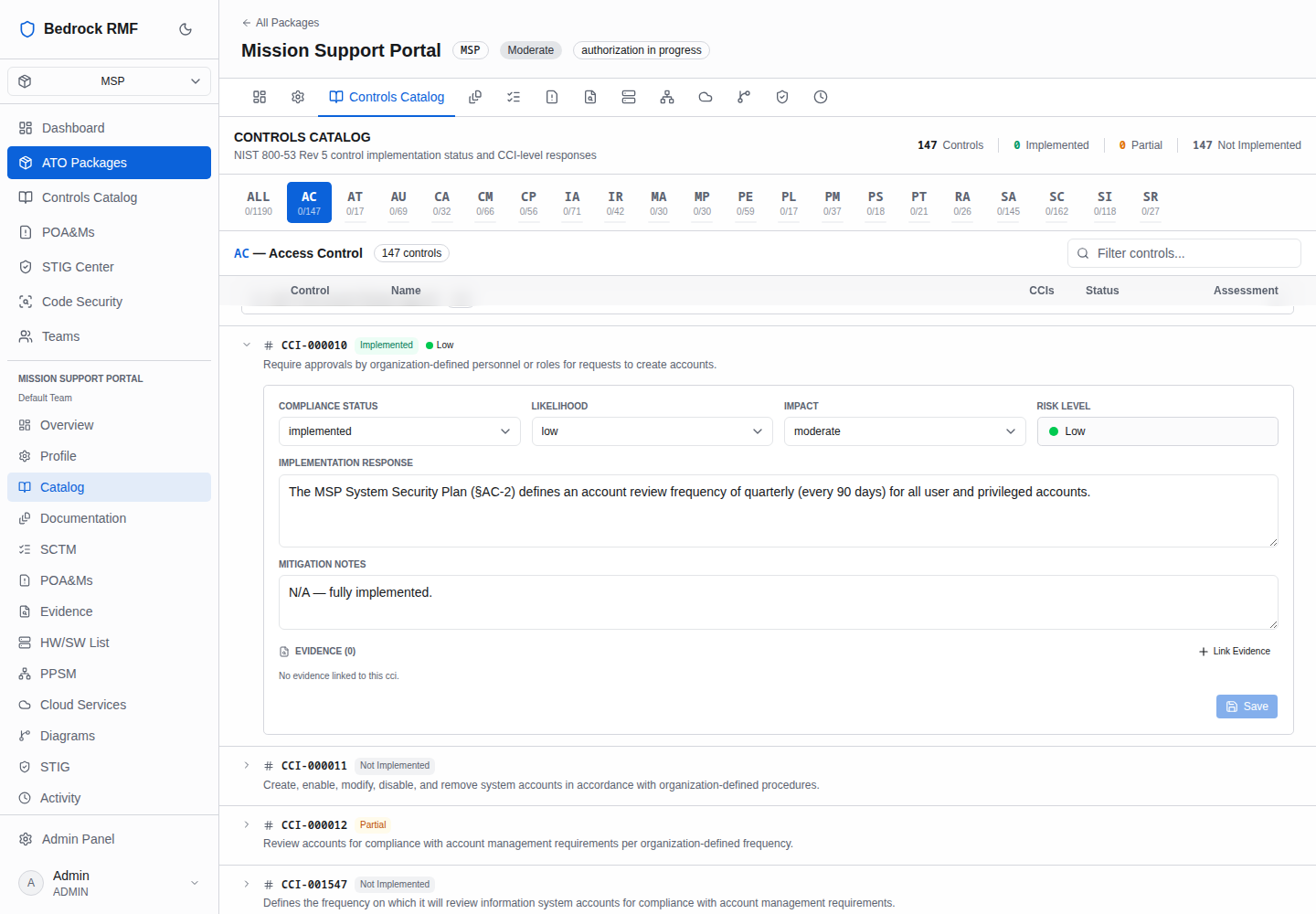

CCI-level responses in the package Catalog

Open Catalog in the package sidebar (or click a control in the SCTM). The page is titled Controls Catalog — NIST 800-53 Rev 5 control implementation status and CCI-level responses, with totals Controls / Implemented / Partial / Not Implemented, the family buttons and Filter controls….

The table shows Control, Name, CCIs (count badge), Status (Not Implemented / Partial / Implemented — derived from the CCI responses) and Assessment. Click a row to expand it inline: the badge and name, CONTROL TEXT, DISCUSSION, then the CCI list.

Each CCI row (CCI-000010, a status pill and the requirement text) expands to the response editor:

• COMPLIANCE STATUS — Not Implemented, Planned, Partial, Implemented or N/A
• LIKELIHOOD and IMPACT — Very Low, Low, Moderate, High, Very High
• RISK LEVEL — computed from likelihood and impact, read-only
• IMPLEMENTATION RESPONSE — "Describe how this CCI requirement is met…"; this is the sentence that ends up in the SSP
• MITIGATION NOTES — "Risk mitigation strategies, compensating controls…"
• EVIDENCE (n) with + Link Evidence
• Save — disabled until something changed

A control only reads Implemented when all of its CCIs are. A control with 35 CCIs and 3 answered still shows Not Implemented, and the family counts in the SCTM reflect that.
